Temperature and Pressure Compensation in Steam Flow Measurement

In steam flow measurement, the core function of temperature and pressure compensation is to eliminate the influence of temperature and pressure fluctuations on steam density, ensuring that the flow measurement results (especially mass flow rate) accurately reflect the amount of steam under actual operating conditions. It can be understood from the following three aspects.

1. Correct density deviation to ensure the accuracy of mass flow rate.

The density of steam is closely related to temperature and pressure, and varies significantly with operating conditions.

★ Saturated steam: Pressure has a one-to-one correspondence with temperature (e.g., 0.5 MPa corresponds to approximately 151.8℃, and 1.0 MPa corresponds to approximately 179.9℃). Pressure changes directly  lead to drastic changes in density (density is approximately 2.67 kg/m³ at 0.5 MPa and approximately 5.15 kg/m³ at 1.0 MPa, a difference of nearly 1 time).

★ Superheated steam: Pressure and temperature change independently, and any change in either parameter will lead to density deviation (e.g., at 1 MPa, the density of superheated steam at 300℃ and 280℃ differs by about 4%).

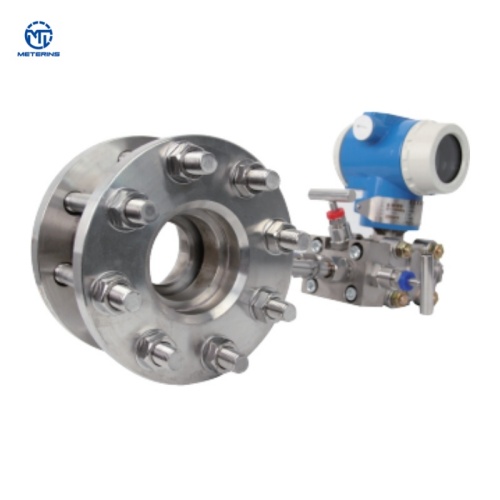

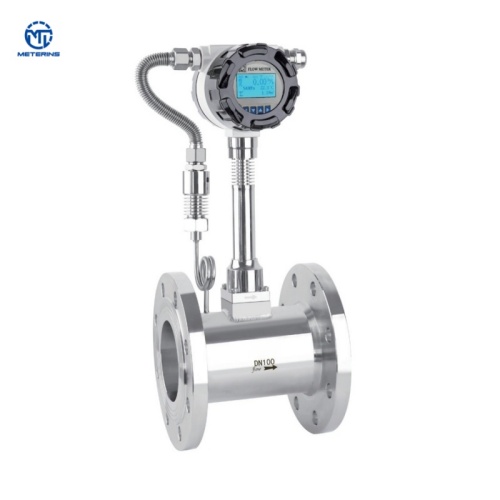

Many flow meters (such as vortex flow meters and differential pressure flow meters) directly measure volumetric flow rate, while actual measurement requires mass flow rate (mass = volume × density). Temperature and pressure compensation collects the current temperature and pressure in real time, calculates the actual density using a standard formula (such as IAPWS-IF97), and then converts the volumetric flow rate into an accurate mass flow rate, avoiding errors  caused by fixed density assumptions (in extreme cases, the error can exceed 20%).

2. Eliminate the interference of operating condition fluctuations on measurements.

In industrial settings, the temperature and pressure of steam often fluctuate due to factors such as boiler load, pipeline resistance, and changes in steam consumption. For example:

★ When the steam pressure drops from the design value of 1.0MPa to 0.8MPa (saturated steam), without compensation, the mass flow rate calculated based on a fixed density will be about 23% higher than the actual value.

★ A 10℃ fluctuation in superheated steam temperature (pressure remains unchanged) may cause a density deviation of 2%~5%, which will seriously affect energy metering, cost accounting or process control in the long run.

Temperature and pressure compensation dynamically corrects density to offset measurement deviations caused by these fluctuations, ensuring that the data reflects the actual steam consumption in real time.

3. Unify measurement standards to achieve data comparability.

Steam operating conditions can vary significantly at different times and with different equipment (e.g., high load during the day and low load at night), making direct comparison of volumetric flow rates impossible. Temperature and pressure compensation can convert the flow rate under actual operating conditions to standard operating conditions (e.g., 0.1 MPa, 100℃), providing a unified benchmark for measurement data across different conditions. This facilitates production management (e.g., energy consumption analysis, equipment efficiency comparison) and trade settlement (avoiding measurement disputes caused by differences in operating conditions).

In short, temperature and pressure compensation is the "corrector" for steam flow measurement. By dynamically adapting to changes in the physical properties of steam, it fundamentally ensures measurement accuracy and is an indispensable part of industrial steam measurement.
