Micro Thermal Gas Mass Flow Meter

The micro thermal gas mass flow meter is specially designed for the measurement and process control of various small flow gases. This series of sensors uses advanced micro-electromechanical system (MEMS) flow sensor chip. It is suitable for all kinds of clean gases. The unique sealing technology makes it suitable for all kinds of pipe diameters. Low cost, easy to install, does not require temperature and pressure compensation. And the micro thermal gas mass flow meter can replace traditional volumetric or differential pressure flow meters.

Features

• Using micro-electromechanical system (MEMS) flow sensor chip. The sensor of the mass flow meter has features of high precision, high sensitivity and strong anti-interference, etc.

• The mass flow meter has a display and setting buttons for simple operation and direct reading (optional).

• The zero point stability of the sensor is greatly improved compared to general thermal flow meters.

• High stability over the entire range.

• The mass flow meter has high accuracy and excellent repeatability over the entire range.

• The mass flow meter combines with structural optimization , the flow meter has a significantly reduced pressure loss compared to traditional mechanical meters, which reduced energy consumption.

• The mass flow meter uses LCD to display instantaneous flow and accumulated flow, clear and intuitive, easy to read.

• Optional 4~20mA standard current signal output and pulse output.

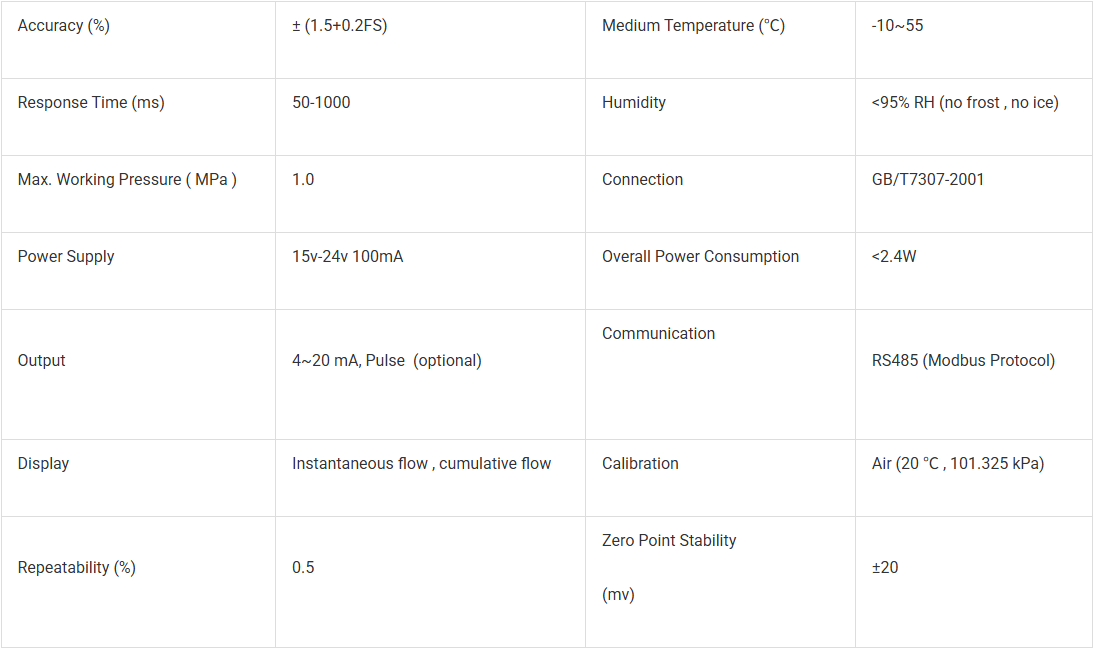

Technical Parameters
