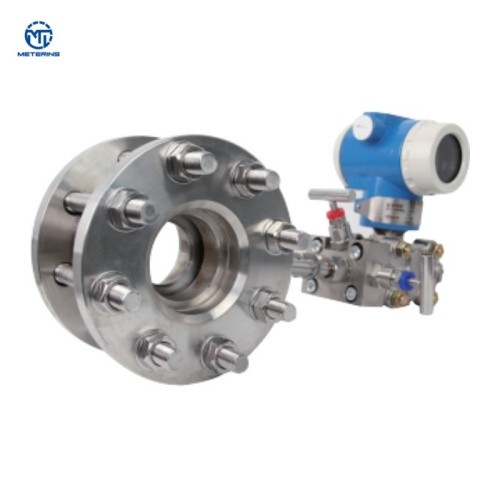

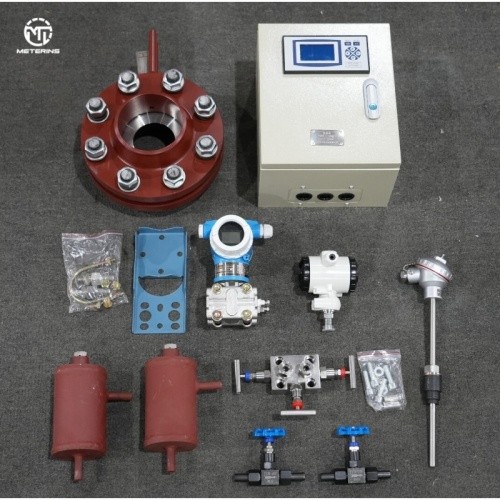

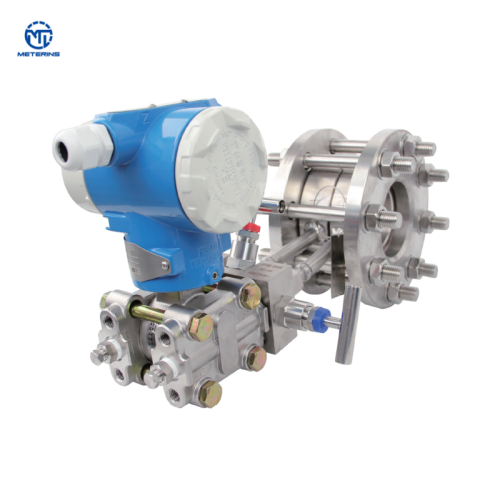

Orifice Plate Flow Meters

The throttling device will be combined with the differential pressure gauge, and be used to measure the flow of liquid, gas and steam. And it's widely used in petroleum, chemical, metallurgy, electric power, light industry and other industrial sectors.
The manufacturing is in line with standards, and with characteristics of simple structure, high precision, safe and reliable, wide range of application and so on.

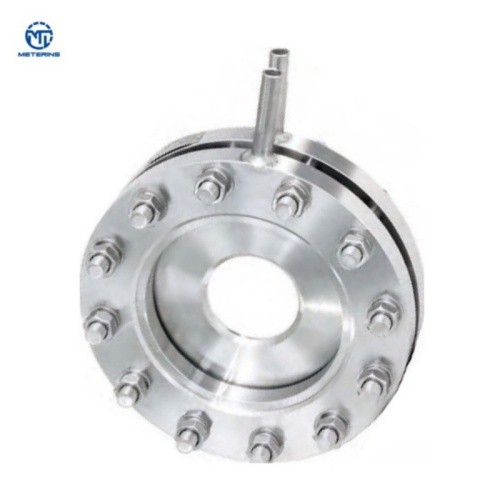

(Single-hole) orifice throttling piece: It is a common throttling device that measures fluid flow or regulates flow by inserting a orifice plate into the pipe to create a pressure difference when the fluid flows through the orifice plate. The throttling principle of orifice plates is based on Bernoulli equation and continuity equation, and the flow rate is calculated by measuring the pressure difference between the inlet and outlet.

Features：

The standard throtting component is commonly used and has been recognized by thelinternational0rganization forstandardization.ltcan be put into use without the need for actual flow calibration and is also unique in flow sensors.

The structure is easy to replicate. Simple, sturdy, stable and reliable in performance, and cost-effective.

Widely applicable, including allsingle-phase fluids (liquid, gas, steam), some mixed phase flows.And the working state (temperaturepressure)ofgeneral production processes can be measured.
